Backpack S-PACK200

Backpack S-PACK200

$1,399.00

The S-PACK200 LiDAR Backpack Platform is a hands-free deployment solution for compatible Feima SLAM scanners, including the SLAM200 Series and SLAM2000. Designed for mobile data collection, it provides a stable, ergonomic platform that allows operators to move efficiently through complex indoor and outdoor environments.

Unlike handheld or vest-based workflows, the backpack keeps the scanner securely mounted and aligned while freeing the operator’s hands. This makes it especially well suited for navigating ladders, catwalks, industrial facilities, and uneven terrain, as well as forestry and outdoor applications where mobility and safety are critical. By shifting the system weight to a balanced, back-mounted configuration, the S-PACK200 also helps reduce operator fatigue during longer scanning sessions.

GNSS & Power Integration

The S-PACK200 enables flexible power and GNSS configurations, including support for extended runtime setups using external power packs. The SLAM200 Series can connect directly to the included survey-grade disc antenna for improved positioning performance. When using the SLAM2000, GNSS capability is enabled through the S-RTK100A RTK module, which integrates with the backpack’s antenna system to provide enhanced satellite tracking and positioning accuracy.

In GNSS-challenged or dynamic environments, the elevated disc-style antenna improves signal-to-noise ratio and reduces multipath interference, supporting more stable positioning and better overall trajectory alignment during SLAM acquisition.

The S-PACK200 can be purchased as a standalone accessory or included as part of a complete scanner system configuration.

5 in stock

SKU: 700.00376.105 Category:

Description

S-PACK200 LiDAR Backpack Platform

The S-PACK200 is a purpose-built backpack platform designed to extend the deployment flexibility of SLAM200 Series and SLAM2000 LiDAR scanners. It provides a stable, ergonomic mounting system that enables efficient, hands-free data collection across a wide range of indoor and outdoor environments.

System Overview

  • Hands-free backpack platform for mobile SLAM data collection
  • Compatible with SLAM200 Series and SLAM2000 scanners
  • Quick-release mounting system for secure and efficient deployment
  • Integrated antenna mounting and cable routing for GNSS-enabled workflows
  • Lightweight design (~2.2 kg) with durable materials including carbon fiber back panel

Why Backpack Deployment

  • Hands-free operation — improves safety and mobility when navigating ladders, catwalks, and confined spaces
  • Reduced operator fatigue — balanced, back-mounted configuration minimizes strain during longer scanning sessions
  • Improved workflow efficiency — allows continuous movement through complex environments without managing handheld equipment
  • Expanded use cases — ideal for industrial facilities, infrastructure corridors, forestry, and uneven outdoor terrain

GNSS Integration & Positioning Performance

  • SLAM200 Series supports direct connection to the included survey-grade disc GNSS antenna
  • SLAM2000 requires the S-RTK100A RTK module to enable GNSS positioning in backpack or handheld workflows
  • Elevated disc-style antenna improves satellite visibility and signal quality
  • Enhanced multipath rejection and signal-to-noise ratio in GNSS-challenged environments
  • Supports more stable RTK performance and improved trajectory alignment during acquisition

Power & Runtime Flexibility

  • Supports extended runtime configurations using external power packs
  • Backpack storage pockets provide convenient placement for batteries and accessories
  • Compatible with power-through configurations when using S-RTK100A
  • Allows longer continuous scanning sessions without frequent battery swaps

Deployment Flexibility

  • Part of the broader Deployment Methods ecosystem (handheld, vest, backpack, vehicle, tripod)
  • Quickly transitions between deployment modes based on project requirements
  • Supports both GNSS-enabled and SLAM-only workflows
  • Can be purchased standalone or integrated into a complete system configuration
Compatible With
SLAM200 Series (SLAM200, SLAM200E-32, SLAM200E-16)
SLAM2000
S-RTK100A RTK Module — required for GNSS-enabled workflows when using the SLAM2000
Backpack Resources - Docs
Data Sheets
📘 Backpack Product Manual
PDF • Product Manual

The S-PACK200 LiDAR Backpack Platform Product Manual.

📘 Backpack Workflow
PDF • Workflow Guide

A SLAM2000 workflow document that includes backpack usage instructions.

📘 RTK Accessory Manual
PDF • Accessory Manual

S-RTK100A Product Manual, a multi-functional portable RTK module utilized with the backpack when paired with the SLAM2000 scanner for GNSS-enabled workflows.

Product Images

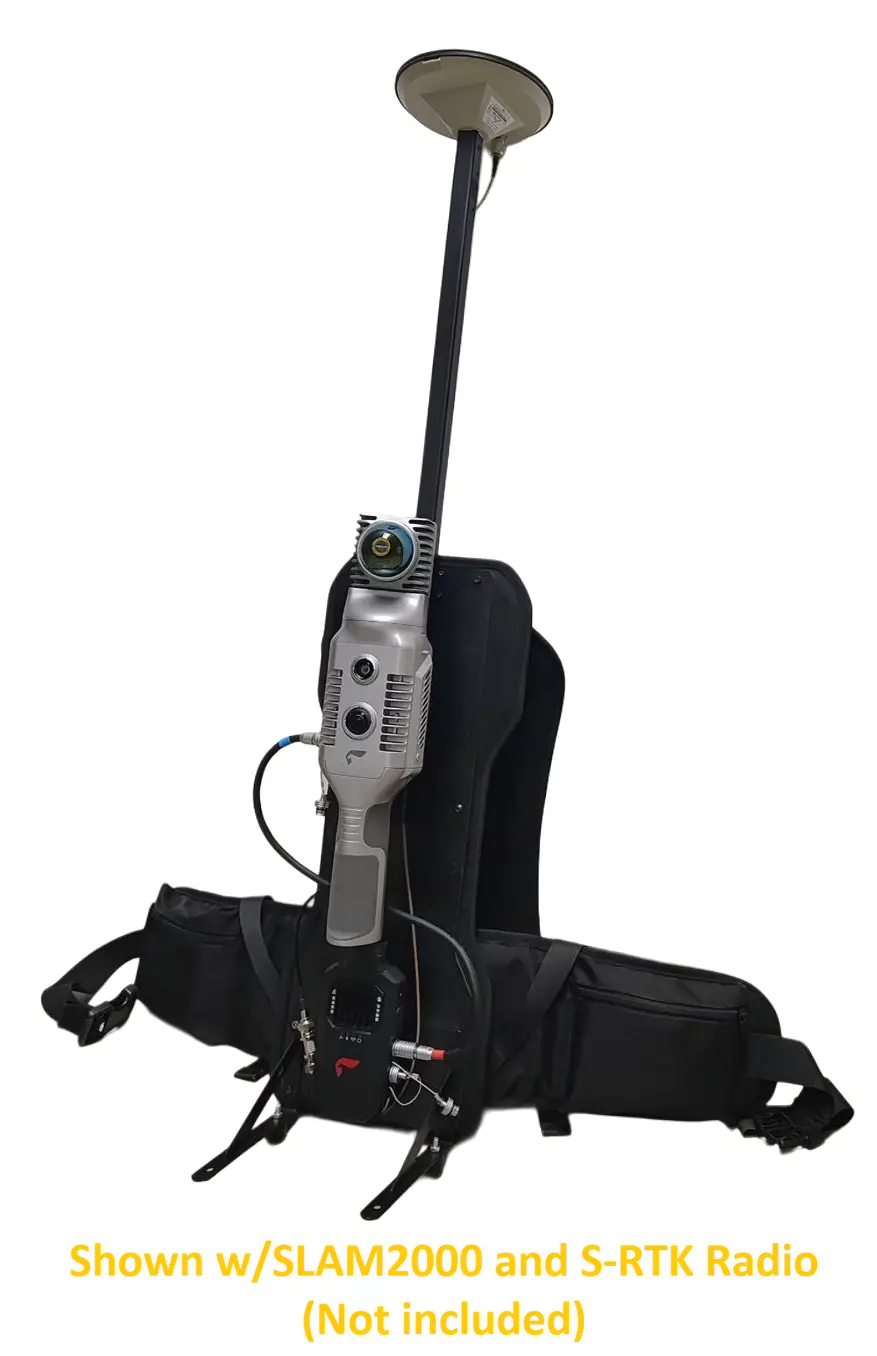

Backpack

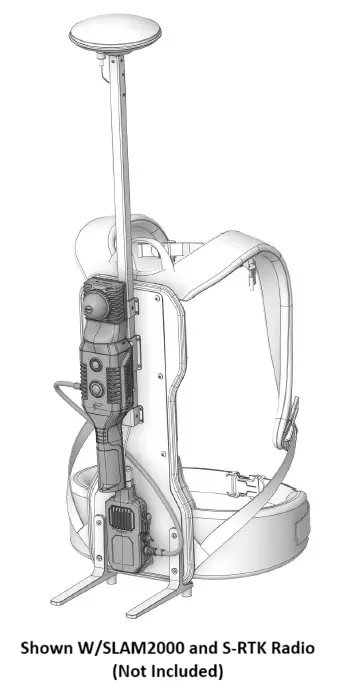

Illustration
Backpack

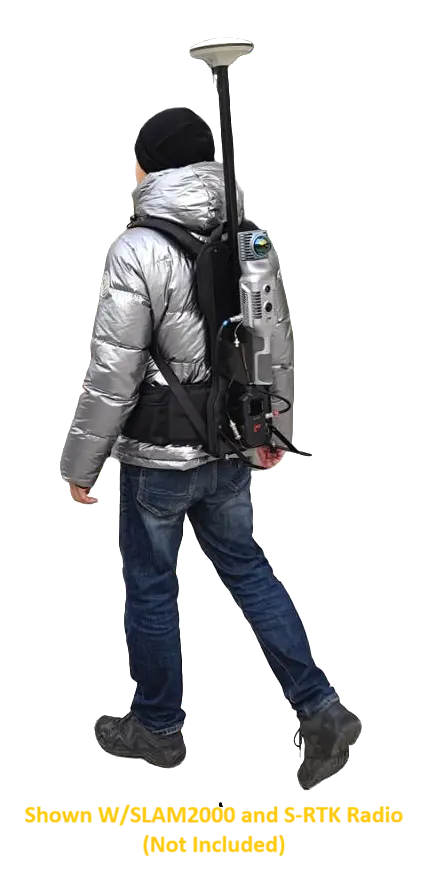

Field Use
