Vehicle-mounted S-Mobile200

Name: Vehicle-mounted S-Mobile200
SKU: 700.00496.005
Availability: InStock

$1,955.00

Vehicle-Mounted SLAM Collection for Large Outdoor Areas

The S-Mobile200 Vehicle Mount expands SLAM200 Series scanners from handheld operation to vehicle-mounted mobile mapping workflows. It is designed for fast data capture across large outdoor environments where driving, riding, or rolling through the site can dramatically improve field productivity.

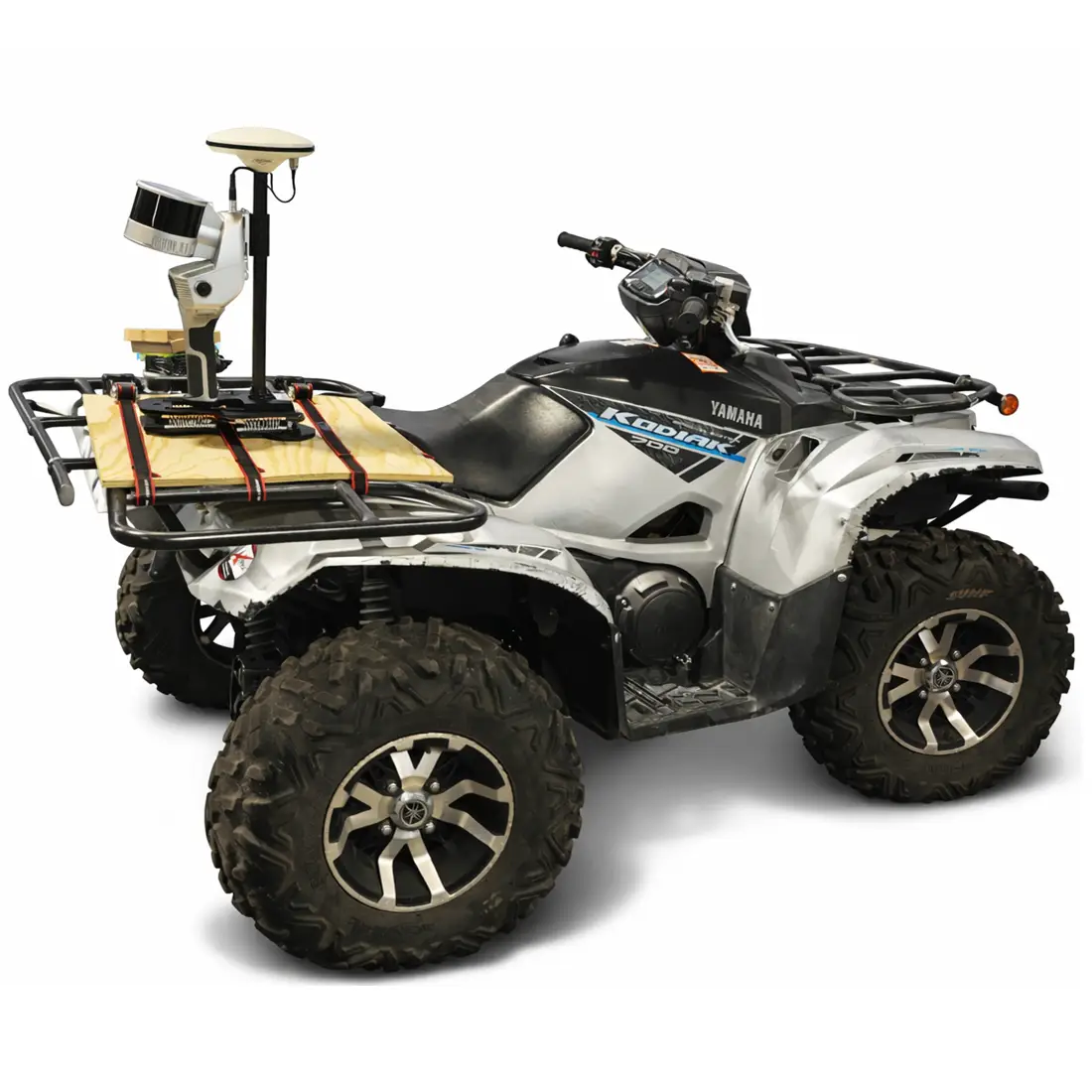

The mount can be attached to a typical automobile, ATV, utility vehicle, cart, forklift, scooter, or other suitable mobile platform. When the collection environment is appropriate, vehicle-mounted SLAM enables large areas to be scanned quickly while maintaining the flexible, continuous-capture advantages of SLAM.

Key Benefits

Increase field productivity: Collect large areas more quickly than handheld walking workflows when site conditions allow vehicle access.
Flexible platform options: Mount to vehicles, ATVs, carts, forklifts, scooters, and other mobile platforms.
Designed for SLAM200 Series scanners: Provides a stable mounting platform for SLAM200, SLAM200E-32, and SLAM200E-16 workflows.
Fast scanner attachment: Uses a quick-lock style scanner connection with reinforced handle support.
Included GNSS antenna: The elevated antenna improves satellite visibility and replaces the standard capsule antenna for vehicle-mounted workflows.

Mounting and Protection

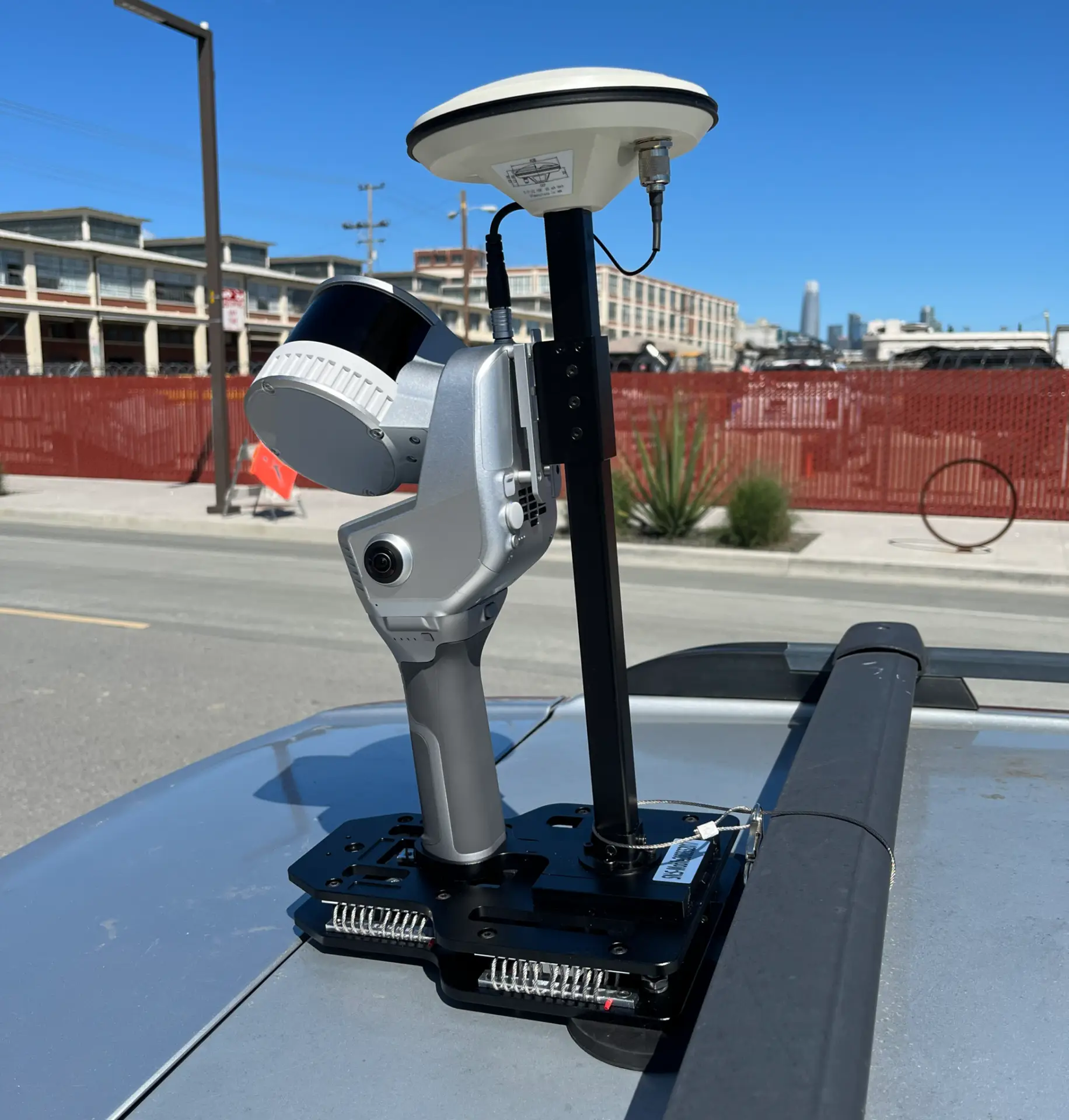

The S-Mobile200 is built from aviation-grade aluminum and uses strong magnetic mounting points for rapid setup on compatible metal surfaces. The magnets include a thin protective rubber layer to help protect painted vehicle surfaces during mounting and removal.

For applications where magnetic mounting is not appropriate, the system may also be secured using alternate methods such as straps or bolts, depending on the vehicle, platform, and site requirements.

GNSS-Enabled Mobile Collection

The included elevated GNSS antenna is intended to improve reception during mobile scanning. For SLAM200 Series scanners, the antenna connects directly to the scanner and replaces the standard capsule antenna used in handheld workflows.

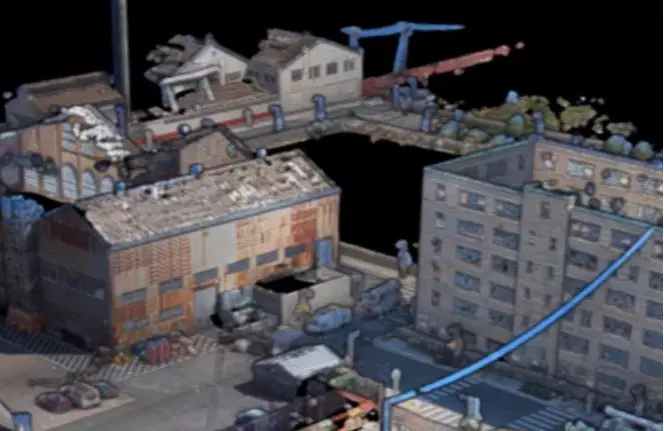

This makes the S-Mobile200 especially useful for outdoor mapping applications where GNSS support can improve georeferencing and overall workflow efficiency.

Typical Applications

Roadways, parking lots, and large paved sites
Industrial yards, campuses, and utility corridors
Warehouses, logistics areas, and distribution facilities
Construction sites with accessible drive paths
Large outdoor areas where walking collection would be inefficient

Compatible Scanners

SLAM200
SLAM200E-32
SLAM200E-16

5 in stock

SKU: 700.00496.005 Category: Deployment Platforms

Description

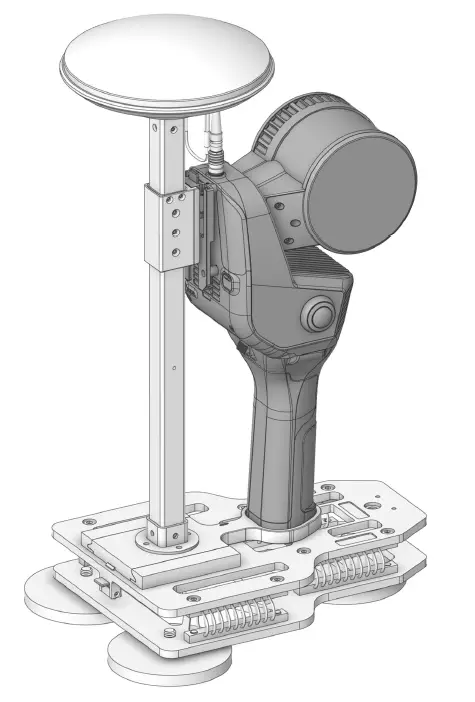

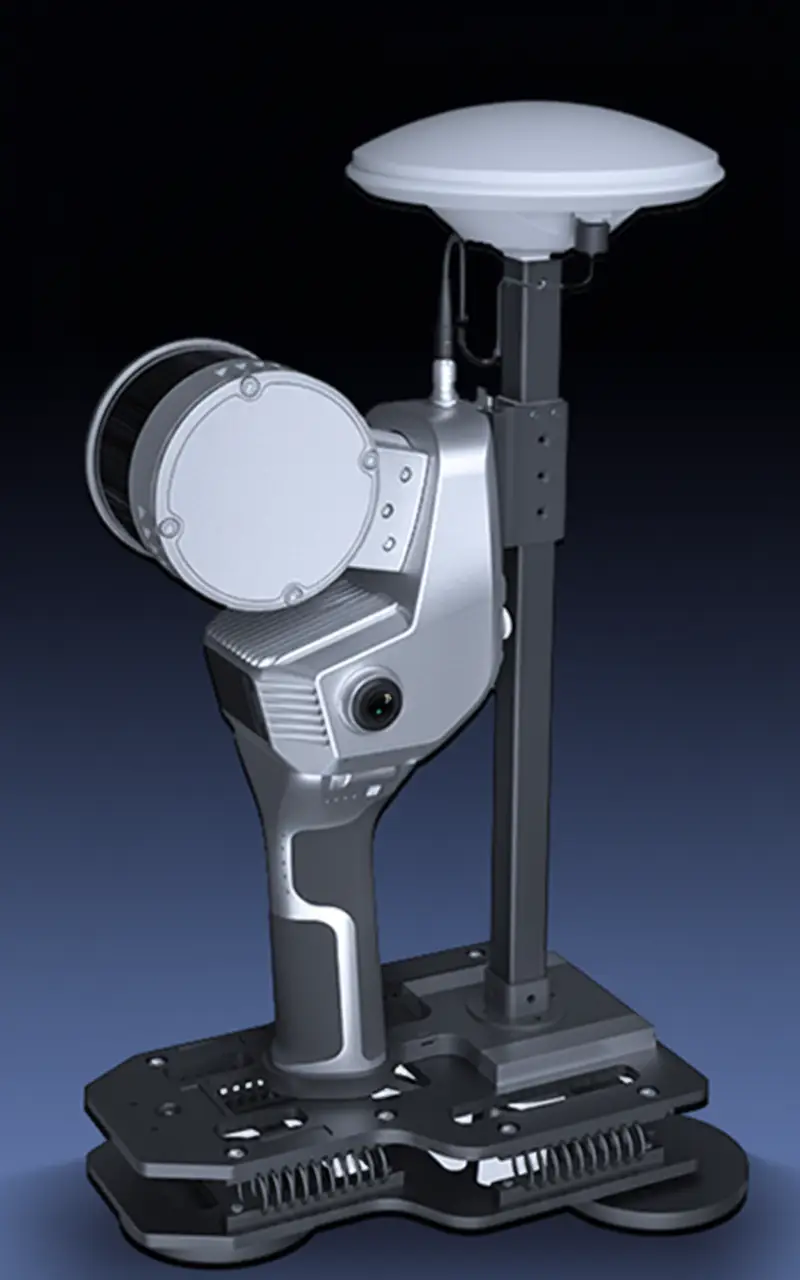

S-Mobile200 Vehicle-Mounted Platform

The S-Mobile200 is a purpose-built vehicle-mounted platform designed exclusively for compatible SLAM200 Series scanners. It extends handheld SLAM scanning into fast, mobile data collection workflows for applications where large areas can be captured efficiently from a moving platform.

System Overview

Vehicle-mounted accessory for SLAM200 Series scanners
Supports mobile data collection from automobiles, ATVs, forklifts, scooters, carts, and other platforms
Designed for large-area scanning in roadways, campuses, industrial sites, job sites, and large facilities
Supports collection speeds up to approximately 15 mph / 30 km/h max
Includes elevated survey-style GNSS antenna for mobile acquisition workflows

Why Vehicle-Mounted SLAM

Higher productivity — capture large environments much faster than handheld walking workflows
Flexible deployment — use with conventional vehicles, site equipment, carts, or other moving platforms
Efficient coverage — well suited for streets, parking areas, corridors, yards, warehouses, campuses, and industrial plants
Practical field setup — fast mounting and removal supports short-duration scans and multi-location projects

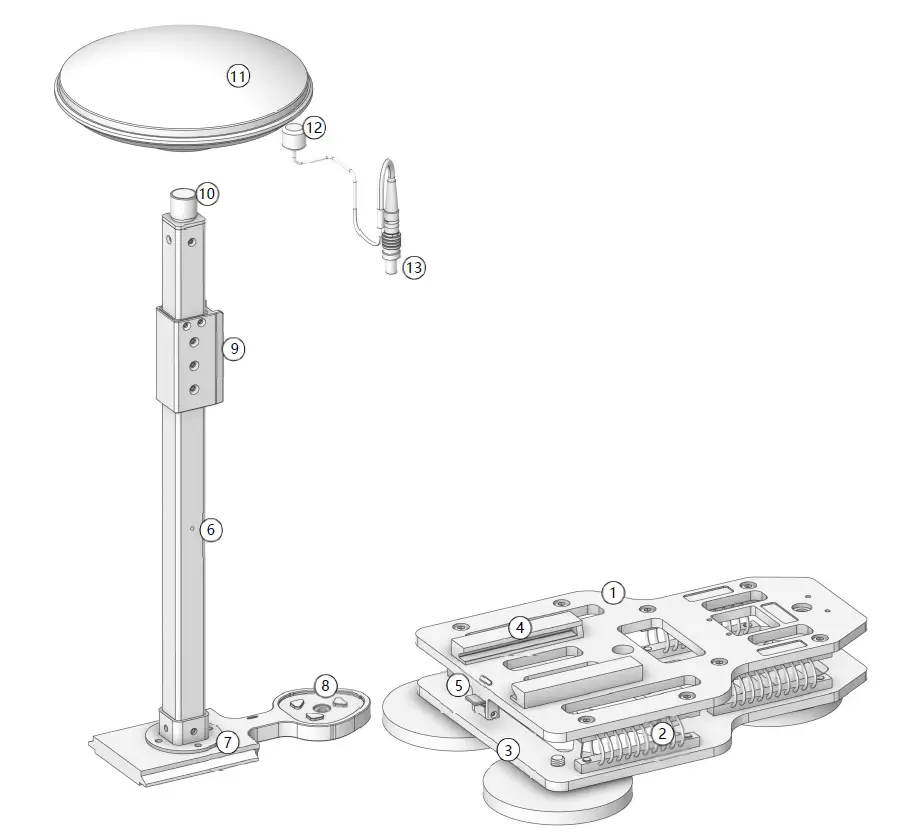

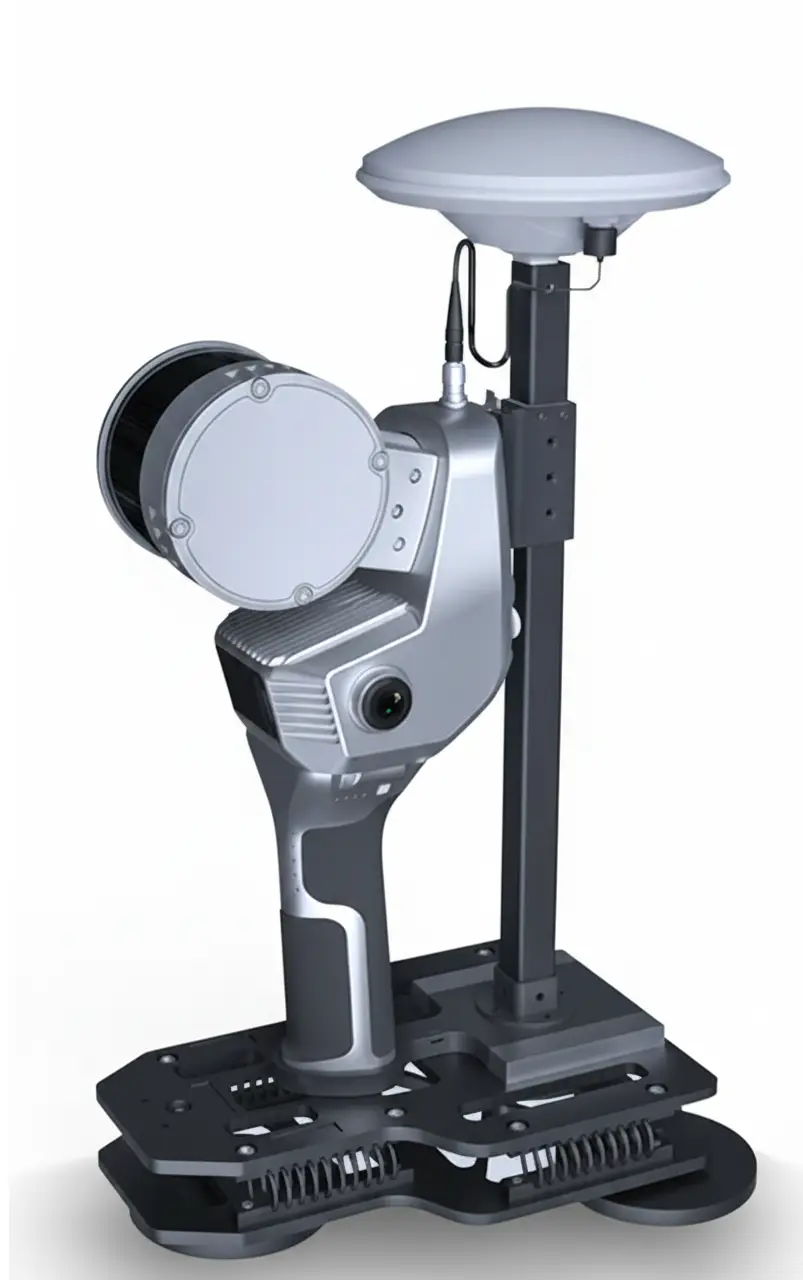

Mounting & Scanner Attachment

Strong magnetic base enables quick attachment to suitable metal surfaces
Rubber-coated magnetic feet help protect painted or finished vehicle surfaces
Optional bolting or strapping can be used where additional attachment security is required
Spring-isolated base helps protect the scanner from vibration and shock during mobile operation

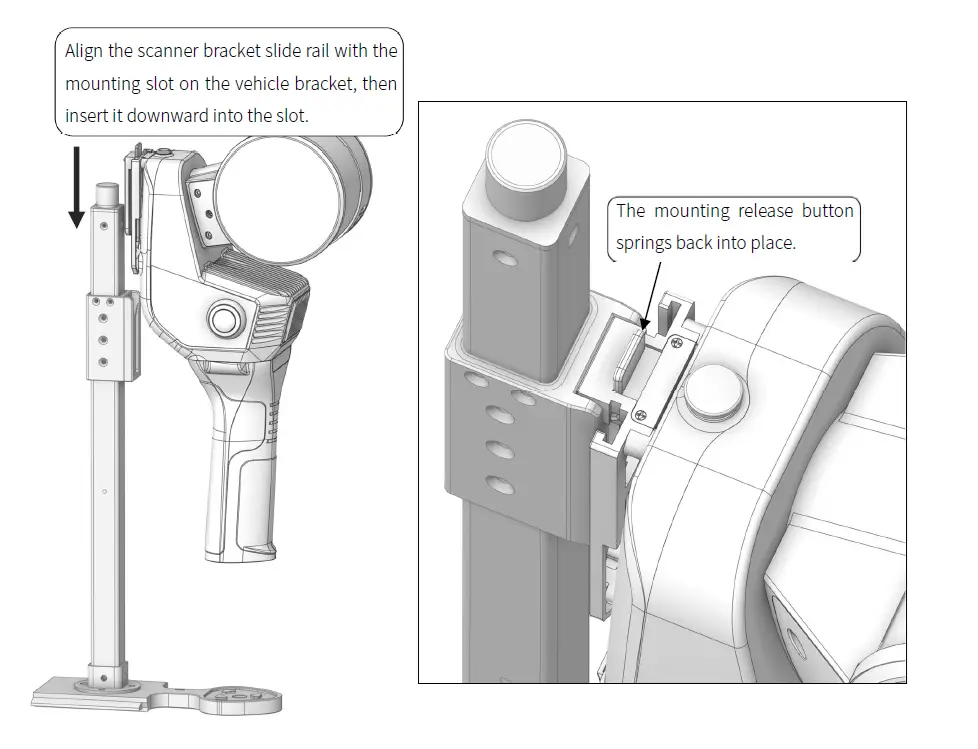

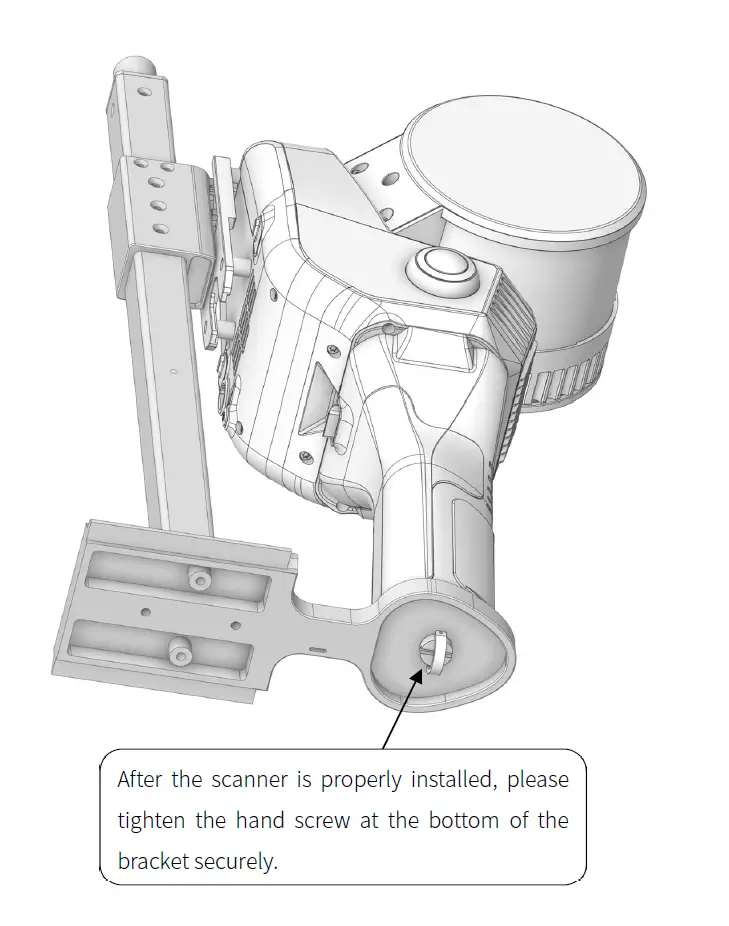

Scanner attachment combines the SLAM200 Series quick-lock snap interface with reinforced handle mounting

GNSS Integration

Includes elevated GNSS antenna for vehicle-mounted collection
Plug-and-play replacement for the standard handheld capsule antenna
Improves satellite visibility compared with low-profile handheld antenna configurations
Supports more stable positioning performance during higher-speed mobile acquisition

Typical Applications

Roadway and streetscape mapping
Industrial site documentation
Campus and facility mapping
Large warehouse or plant interiors
Construction sites and logistics yards
Utility corridors, parking areas, and outdoor infrastructure environments

Compatible With

SLAM200 Series scanners
Includes elevated GNSS antenna and vehicle-mounted platform hardware
Designed for mobile collection workflows up to approximately 15 mph / 30 km/h max

Vehicle Mount Resources - Docs

Manuals

📘 Vehicle Mount Product Manual

PDF • Product Manual

The S-Mobile200 Vehicle Mount Product Manual.
